1984 Ford Ltd Crown Victoria, V-8 4d Sed

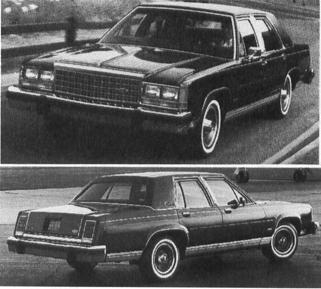

LTD CROWN VICTORIA - V-8 - Crown Vic's new grille featured a light argent second surface, and a new optional Brougham roof for the four-door had a formal look. It included a padded full vinyltop, a more upright rear window with ‘trenched’ treatment, and electro-luminiscent coach lamps on the center pillar. Interiors had a new vinyl grain pattern, Otherwise, the full-size Ford was a carryover, available again as a two- or four-door sedan, and pair of wagons. The Crown Victoria station wagon was just a Country Squire without simulated wood trim. The wide grille had a 12 × 4 hole Crosshatch pattern (plus a 2 × 2 pattern within each segment). Wide amber parking lamps went below the quad headlamps. Amber signal/marker lenses consisted of a large lens above a small one. ‘LTD Crown Victoria’ lettering went ahead of the front door, just above the crease line. Sole standard engine was the 302 cu. in. (5.0-liter) fuel-injected V-8. The high-performance 351 cu. in. (5.8-liter) V-8 with variable-venturi carburetor was available only with police package.
Vehicle Features
| Model No. | Body/Style No. | Body Type & Seating | Factory Price | Shipping Weight | Production Total |
|---|---|---|---|---|---|
| 04 | 61D | 2-dr. Hatch-4P | $5,629 | 1981 | Note 1 |
| 13 | 58D | 4-dr. Hatch-4P | $5,835 | 2024 | Note 1 |
| 04 | 61D | 2-dr. L Hatch-4P | $5,885 | 1981 | Note 1 |
| 13 | 58D | 4-dr. L Hatch-4P | $6,099 | 2034 | Note 1 |
| 09 | 74D | 4-dr. L Sta Wag-4P | $6,313 | 2066 | Note 1 |
| 05 | 61D | 2-dr. GL Hatch-4P | $6,382 | 2033 | Note 1 |
| 14 | 58D | 4-dr. GL Hatch-4P | $6,596 | 2086 | Note 1 |
| 10 | 74D | 4-dr. GL Sta Wag-4P | $6,773 | 2115 | Note 1 |
| 15 | 58D | 4-dr. LX Hatch-4P | $7,848 | 2137 | Note 1 |
| 11 | 74D | 4-dr. LX Sta Wag-4P | $7,939 | 2073 | Note 1 |
| ESCORT GT (FOUR) | |||||
| 07 | 61D | 2-dr. Hatch-4P | $7,593 | 2103 | Note 1 |
| 07 | 61D | 2 dr. Turbo Hatch-4P | N/A | 2239 | Note 1 |
| Note 1: Total Escort production came to 184,323 two-door hatchbacks, 99,444 four-door hatchback sedans, and 88,756 station wagons. Breakdown by trim level not available. Bodies are sometimes referred to as three-door and five-door. | |||||
| Diesel Engine Note: Diesel-powered Escorts came in L and GL trim, priced $558 hioher than equivalent aasoline models. | |||||
| EXP(FOUR) | |||||
| 01/A80 | 67D | 3-dr. Hatch Cpe-2P | $6,653 | 2117 | 23,016 |
| 01/A81 | 67D | 3-dr. Luxury Cpe-2P | $7,539 | 2117 | Note 2 |
| 01/A82 | 67D | 3-dr. Turbo Cpe-2P | $9,942 | 2158 | Note 2 |
| Note 2: Production of luxury and turbo coupe models is included in basic EXP total above. | |||||
| TEMPO (FOUR) | |||||
| 18 | 66D | 2-dr. L Sedan-5P | $6,936 | 2249 | Note 3 |
| 21 | 54D | 4-dr. L Sedan-5P | $6,936 | 2308 | Note 3 |
| 19 | 66D | 2-dr. GL Sed-5P | $7,159 | 2276 | Note 3 |
| 22 | 54D | 4-dr. GL Sed-5P | $7,159 | 2339 | Note 3 |
| 20 | 66D | 2-dr. GLX Sed-5P | $7,621 | 2302 | Note 3 |
| 23 | 54D | 4-dr. GLX Sed-5P | $7,621 | 2362 | Note 3 |
| Note 3: Total Tempo production came to 107,065 two-doors and 295,149 four-doors. | |||||
| Diesel Engine Note: Diesel-powered Tempos cost $558 more than equivalent gasoline models. | |||||
| LTD (FOUR/V-6) | |||||
| 39 | 54D | 4-dr. Sedan-5P | 8605/9014 | 2804/2881 | 154,173 |
| 39/60H | 54D | 4-dr. Brghm-5P | 9980/10389 | 2812/2889 | Note 4 |
| 40 | 74D | 4-dr. Sta Wag-5P | ----/9102 | ----/2990 | 59,569 |
| Note 4: Brougham production is included in basic sedan total. | |||||
| LTD CROWN VICTORIA (V-8) | |||||
| 42 | 66K | 2-dr. Sedan-6P | $10,954 | 3546 | 12,522 |
| 43 | 54K | 4-dr. Sedan-6P | $10,954 | 3587 | 130,164 |
| 44 | 74K | 4-dr. Ctry Sqr-6P | $11,111 | 3793 | 30,803 |
| 43/41 | 54K | 4-dr. ‘S’ Sed-6P | $9,826 | N/A | Note 5 |
| 44/41 K | 74K | 4-dr. ‘S’ Wag-6P | $10,136 | N/A | Note 5 |
| 44/41 E | 74K | 4-dr. Sta Wag-6P | $10,861 | N/A | Note 5 |
| Note 5: Production of ‘S’ models and basic station wagon is included in basic sedan and Country Squire totals above. | |||||
| THUNDERBIRD (V-6/V-8) | |||||
| 46 | 66D | 2-dr. HT Cpe-4P | 9633/10253 | 2890/3097 | 170,533 |
| 46/607 | 66D | 2-dr. Elan Cpe-4P | 12661/13281 | 2956/3163 | Note 6 |
| 46/606 | 66D | 2-dr. Fila Cpe-4P | 14471/14854 | 3061/3268 | Note 6 |
| THUNDERBIRD TURBO COUPE (FOUR) | |||||
| 46/934 | 66D | 2-dr. HT Cpe-4P | $12,330 | 2938 | Note 6 |
Engine
ENGINE DATA: BASE FOUR (Escort): Inline. Overhead cam. Four-cylinder. Cast iron block and aluminum head. Displacement: 97.6 cu. in. (1.6 liters). Bore & stroke: 3.15 × 3.13 in. Compression ratio: 9.0:1. Brake horsepower: 70 at 4600 R.P.M. Torque: 88 lb.-ft. at 2600 R.P.M. Five main bearings. Hydraulic valve lifters. Carburetor: 2Bbl. Motorcraft 740. VIN Code: 2. BASE FOUR (EXP); OPTIONAL (Escort): High-output version of 1.6-liter four above Horsepower: 80 at 5400 R.P.M. Torque: 88 lb.-ft. at 3000 R.P.M. VIN Code: 4. BASE FOUR (Escort LX, GT); OPTIONAL (Escort, EXP): Fuel-injected version of 1.6-liter four above Horsepower: 84 at 5200 R.P.M. Torque: 90 lb.-ft. at 2800 R.P.M. VIN Code: 5. TURBO FOUR (Escort, EXP): Same as 1.6-liter four above, with fuel injection and turbocharger Compression ratio: 8.0:1. Horsepower: 120 at 200 R.P.M. Torque: 120 lb.-ft. at 3400 R.P.M. VIN Code: 8. DIESEL FOUR (Escort, Tempo): Inline. Overhead cam. Four-cylinder. Cast iron block and aluminum head. Displacement: 121 cu. in. (2.0 liters). Bore & stroke: 3.39 × 3.39 in. Compression ratio: 22.5:1. Brake horsepower: 52 at 4000 R.P.M. Torque: 82 lb.-ft. at 2400 R.P.M. Five main bearings. Solid valve lifters. Fuel injection. VIN Code: H. BASE FOUR (Tempo): Inline. Overhead valve. Four-cylinder. Cast iron block and head. Displacement: 140 cu. in. (2.3 liters). Bore & stroke: 3.70 × 3.30 in. Compression ratio: 9.0:1. Brake horsepower: 84 at 4400 R.P.M. Torque: 118 lb.-ft. at 2600 R.P.M. Five main bearings. Hydraulic valve lifters. Carburetor: 1Bbl. Holley 6149. High Swirl Combustion (HSC) design. VIN Code: R (U.S.) or J (Mexico). BASE FOUR (LTD): Inline. Overhead cam. Four-cylinder. Cast iron block and head. Displacement: 140 cu. in. (2.3 liters). Bore & stroke: 3.78 × 3.13 in. Compression ratio: 9.0:1. Brake horsepower: 88 at 4000 R.P.M. Torque: 122 lb.-ft. at 2400 R.P.M. Five main bearings. Hydraulic valve lifters. Carburetor: 1 Bbl. Carter YFA. VIN Code: A. PROPANE FOUR (LTD): Same as 140 cu. in. four above, but for propane fuel Compression ratio: 10.0:1. Brake horsepower: 88 at 4000 R.P.M. Torque: 122 lb.-ft. at 2400 R.P.M. VIN Code: 6. TURBOCHARGED FOUR (Thunderbird Turbo Coupe): Same as 140 cu. in. four above, with fuel injection and turbocharger Compression ratio: 8.0:1. Horsepower: 145 at 4600 R.P.M. Torque: 180 lb.-ft. at 3600 R.P.M. VIN Code: W. BASE V-6 (Thunderbird); OPTIONAL (LTD): 90-degree, overhead valve V-6. Cast iron block and aluminum head. Displacement: 232 cu. in. (3.8 liters). Bore & stroke: 3.80 × 3.40 in. Compression ratio: 8.7:1. Brake horsepower: 120 at 3600 R.P.M. Torque: 205 lb.-ft. at 1600 R.P.M. Four main bearings. Hydraulic valve lifters. Throttle-body fuel injection. VIN Code: 3. BASE V-8 (Crown Victoria); OPTIONAL (Thunderbird): 90-degree, overhead valve V-8. Cast iron block and head. Displacement: 302 cu. in. (5.0 liters). Bore & stroke: 4.00 × 3.00 in. Compression ratio: 8.4:1. Brake horsepower: 140 at 3200 R.P.M. Torque: 250 lb.-ft. at 1600 R.P.M. Five main bearings. Hydraulic valve lifters. Electronic fuel injection (TBI). VIN Code: F. NOTE: Crown Victoria wagons had a high-output 302 cu. in. V-8 rated 155 horsepower at 3600 R.P.M. 265 lb.-ft. at 2000 R.P.M. HIGH-OUTPUT POLICE V-8 (Crown Victoria): 90-degree, overhead valve V-8. Cast iron block and head. Displacement: 351 cu. in. (5.8 liters). Bore & stroke: 4.00 × 3.50 in. Compression ratio: 8.3:1. Brake horsepower: 180 at 3600 R.P.M. Torque: 285 lb.-ft. at 2400 R.P.M. Five main bearings. Hydraulic valve lifters. Carburetor: 2Bbl. VV. VIN Code: G.
Chassis
4d Sed
Convenience Options
LTD CROWN VICTORIA CONVENIENCE/APPEARANCE OPTIONS: Option Packages: Interior luxury group ($954–$1034). Convenience group ($109–$134). Power lock group ($140–$238). Light group ($48). Protection group ($68). Police pkg. ($279–$398). Comfort/Convenience: Air cond. ($743); w/auto-temp control ($809). Rear defroster, electric ($140). Fingertip speed control ($176). Illuminated entry system ($82). Power windows ($198–$272). Power driver's seat ($227); driver and passenger ($454). Remote fuel door lock ($35). Tinted glass ($110); windshield only ($48). Autolamp on/off delay ($73). Leather-wrapped steering wheel ($59). Tilt steering wheel ($110). Auto, parking brake release ($12). Tripminder computer ($215–$261). Digital clock ($61). Interval wipers ($50). Lighting and Mirrors: Cornering lamps ($68). Remote right mirror ($46). Lighted visor vanity mirrors ($106). Entertainment: AM/FM stereo radio: S ($106); w/cassette tape player ($112–$204). Electronic-tuning AM/FM stereo radio w/cassette ($166) exc. S($416V Power antenna ($66). Premium sound system ($151–$179). Radio delete ($148 credit). Exterior: Metallic glow paint ($77). Two-tone paint ($117). Dual accent bodyside paint stripes ($39). Pivoting front vent windows ($79). Rocker panel moldings ($18–$38). Vinyl-insert bodyside moldings ($61). Bumper rub strips ($59). Luggage rack ($110). Lower bodyside protection ($39–$52). Interior: Dual-facing rear seats: Ctry Sq ($167). Leather seat trim ($418). Split bench seating ($139). All-vinyl seat trim ($34); Du-raweave vinyl ($96). Carpeted front floor mats ($21). Trunk trim ($49). Wheels/Tires: Wire wheel covers ($165); locking ($204). Cast aluminum wheels ($390). P225/75R14 WSW ($42–$43). P205/75R15 WSW ($17); puncture-sealant ($178). P215/75R14 BSW ($66 credit). Conventional spare ($63).
